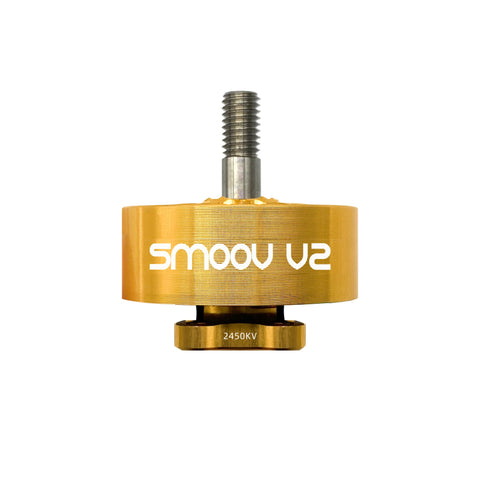

NewBeeDrone Smoov V2 Ring Magnet 2306.5 Cinematic FPV Drone 4S Motor 2450KV

  • $32.99
  • Save $13.00


Like us? Please hit the Like button below:)


Product Description:

NewBeeDrone Smoov V2 Ring Magnet 2306.5 Cinematic FPV Drone 4S Motor 2450KV

We are happy to introduce the new member of the Smoov family!

Ring Magnets for an FPV drone? Yes! Team NewBeeDrone put in countless hours to figure out how we can improve upon our Smoov-Certified freestyle motor which provides super smooth performance for freestyle and cinematic FPV while maintaining the durability and precision machining you've come to expect from NewBeeDrone. We are proud to say that we have done just that... again!

The 2306.5 Smoov V2 ring magnet motor has not only improved upon our very successful V1 motor, it is now 3 grams lighter! It's constructed with 7075 aluminum alloy unibell design for the best structural rigidity and comes with fully molded ring-style magnets.

Ring motors are also easier to clean than traditional motors. Unlike traditional square magnet motors, the Smoov ring magnets have no physical spacing between the magnets to allow for quick and easy removal of dirt, grime, or anything you can manage to get into them.

Making a fully molded ring magnet with high magnetic flux density is at the heart of our design. We have developed a ring magnet that can hold up to N48SH levels! Ring magnets are typically used in camera gimbals because they need to operate silky smooth. Traditional gimbal motors are super smooth but they lack punch and power. The Smoov V2 motors have both, along with improved balancing and better performance. The Smoov V2 ring magnet motors have more punch, less weight, higher strength, and they're Smoover than ever!



Specifications

  • Brand Name: NewBeeDrone
  • No.of Cells(Lipo): 4S
  • Stator Diameter: 23mm
  • Stator Height: 6.5mm
  • Shaft Diameter: 5mm
  • Motor Dimension (Dia.*Len): Ø29.4mm*31.6mm
  • Weight(g): 36(include cable)
  • Wire Size: 20AWG 150mm
  • Suggested Propeller: 5-6
  • Recommended ESC: 30-60A
  • Frame Size: 200-250mm
  • Bearing: NSK/NMB 684ZZ  Ø9×Ø4×L4mm



Features

  • Single-winding with 0.15mm lamination stator.
  • Ring Magnet N48SH NdFeB V2
  • Wire: 20AWG 150mm
  • Super Smoov performance for freestyle and cinematic purpose
  • Japanese NSK Bearing
  • 7075 Aluminum
  • 2450KV for 4S
  • 12N14P
  • 6" prop compatible with Motor Limit Settings in BetaFlight

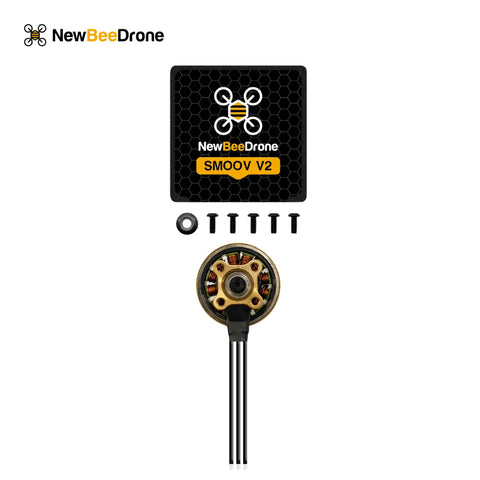

Package Includes

  • 1x 2306.5 Smoov 4S Motor (2450KV)
  • 2x M5 Aluminum nut
  • 5x M3*8 Round head hex socket screws
