RekonFPV Rekon35 Nano HD 18650 Caddx Polar DJI System Long Range GPS FPV Drone BNF ELRS 2.4G

  • $519.99
  • Save $40.00


Like us? Please hit the Like button below:)


Product Description:

RekonFPV Rekon35 Nano HD 18650 Caddx Polar DJI System Long Range GPS FPV Drone BNF ELRS 2.4G

DESCRIPTION

RekonFPV Rekon35 Nano long range 2S 3.5 inch 18650 super long lasting FPV HD Drone

The Rekon 3.5 is what I always wanted the original #MicroLongRage to be; Sub 250g and powered by a 2S Li-Ion!

Two years ago, the components to make such a concept work properly just weren’t available: Electronics were not running reliably when the power supply dropped below 5V, efficient motor-prop combos with the right size weren’t available and building DIY 2S Li-Ion packs was laborious. But the FPV industry has made a stunning amount of progress and today, with the support of HGLRC the Rekon 3.5 is finally making it happen. You can simply use cheap off-the-shelf 18650 batteries and the electronics are so reliable that in an emergency you can empty the Li-Ion batteries way below the recommended voltage without any impact on the FPV video feed and radio control link.

Dave C_FPV


Key Features:

  • Efficient and quiet sub 250g 3.5” platform with 15+ min flight time
  • 1303.5 5500kV motors ensure a decent flight performance
  • Works with any high-discharge 18650
  • Integrated Reliable power supply for the DJI vista unit
  • Capable of carrying a Naked GoPro or Insta 360 go type camera
  • Fully long-range capable GPS and return to home functions


A few things to note before you buy:

Our experiences with the Rekon 3 have shown that the type of 18650 batteries used can affect the performance of the quad and might lead to misfunctions. Please be careful to slowly test out the flight time limits of the specific batteries you are using
Unfortunately, diodes performing well enough to serve as reverse polarity protection without significantly impacting performance simply don’t exist. Therefore, please be aware that the Rekon3.5 has no reverse polarity protection and inserting the batteries the wrong way will permanently damage the electronics.



Specifications:

  • Name: Rekon35 Nano Long Range FPV Drone - HD Version

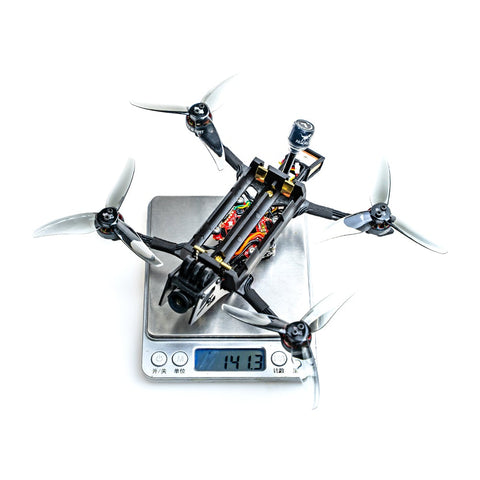

  • Weight: 141.3g (Weight without receiver)
  • Rekon35 LR Frame
  • Type: 3.5-inches Frame
  • Wheelbase: 160mm
  • Propeller support: 3.5 Inches


Zeus10 AIO 2-6S flight controller

  • Input voltage: 2-6S
  • Flight control firmware: BF ZEUSF4EVO
  • ESC firmware: BL_S/P_H_10
  • Size: 32.5x32.5mm


CADDX Polar vista

  • Operating Frequency:5.725-5.850 GHz
  • Input voltage:7.4-26.4V
  • Channels:8


Rekon 1303.5 KV5500 brushless motor

  • Input voltage:7.4V (2S)
  • Recommended blade:3 inches


M80 GPS

  • Input voltage:5V
  • Size:18.5mm x 18.5mm x 7.1mm


DC9V Power Module

  • Input voltage:5V-9V
  • Output voltage:9V
  • Size:25mm x 8.5mm x 3mm

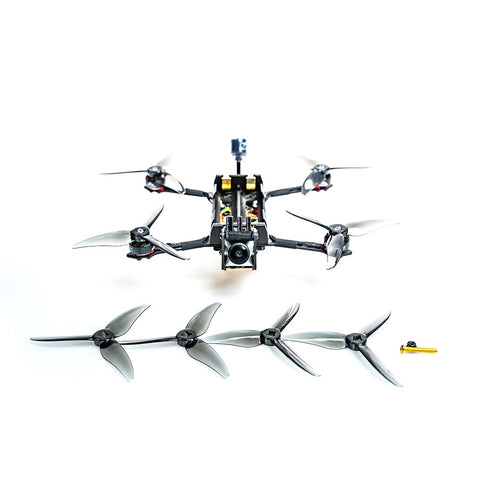

GEMFAN 3520 3.5 inch 3-blades propeller

  • Quantity:4 CW & 4 CCW


Package Included:

  • 1x Rekon3.5 Long Range Frame
  • 1x Zeus10 AIO flight controller
  • 1x CADDX Polar Vista Kit
  • 4x Rekon 1303.5 KV5500 brushless motor
  • 1x M80 GPS
  • 8x GEMFAN 3520 3.5-inch 3-blades propeller
  • 1x IPEX Hammer mini Antenna
  • 1x ELRS 2.4G Receiver


Recommended battery:

  • 2S: 18650-3000mAh



See Manual Here
