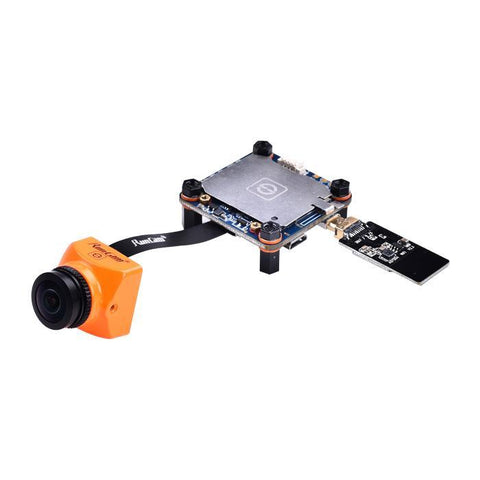

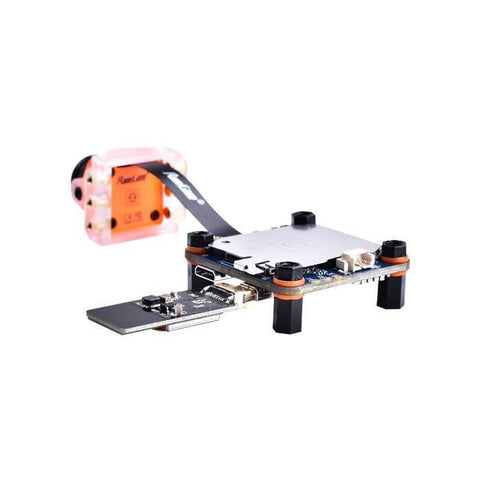

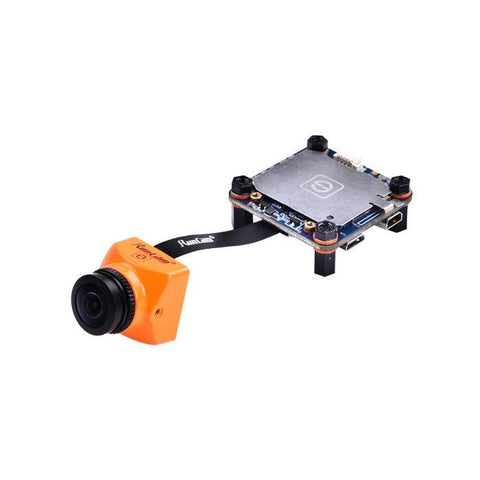

RunCam Split 2 S
The RunCam Split 2S takes the Split 2 and refines it even further, making this the best RunCam Split camera yet! Some of the most notable changes are the reduction in size to the camera module. Going from 22 x 20mm to now at 19 x 19mm "micro" size. The PCB is 38 x 38mm with a standard 30 x 30 mm mounting pattern for universal mounting on standard sized mounting holes.
It also was reworked to give a slightly larger FOV compared to the Split 2 and even comes a few grams lighter!
The Split 2S comes equipped with the same great HD recording capability as before. Capturing full HD at 60fps.
Comes with a WiFi module for ultimate flexibility. The WiFi module gives features such as live preview, video playback, camera parameter setting, and firmware upgrades.
- 1080P/60fps HD recording & WDR FPV camera
- Super WDR FPV image with low latency
- Simultaneous HD recording and FPV output
- Increased Field of View (FOV): FPV 140° / HD 170°
- Replaceable lens
- Wide voltage range
- WiFi module adjusts settings/update firmware from mobile app
|Field of View(FOV)||FPV FOV 4:3@140°, 16:9@170°/HD Recording 170°|
|Lens Thread Size||M12*0.5|
|Video Resolution||1080@60fps/1080@50fps /1080@30fps/720@60fps|
|Video File Format||MOV|
|Image Resolution||2 Megapixels|
|TV Mode||NTSC (720*480)/PAL (720*576) Switchable|
|Interface||Micro USB / UART|
|Max Micro SD Card Supported||64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)|
|WiFi Module||Support (Removable)|
|Dimensions||PCB 38*38mm/Lens Module 19*19mm|
|Power Input||DC 5-15V / DC 5V(USB)|
|Working Current||650mA @5V / 270mA @12V|
- 1x Camera
- 1x WiFi Module
- 1x SD Card Protector
- 1x ABS Bracket
- 1x 3pin FPV Silicone Cable (male)
- 1x 3pin Silicone Cable (female)
- 1x Set of Screws w/ Rubber Grommets
- 1x Manual
