RUSHFPV RUSH BLADE F722 Flight Controller For DJI Digital FPV System

  • $55.95


Like us? Please hit the Like button below:)


Product Description:

Features

  • High-performance STM32 F722 MCU with speeds up to 216MHz. • Using MPU6000 with integrated accelerometer and gyroscope, stable and reliable.
  • Built-in16M black box,Barometer,5 UART ports, 6 pwm output ports, 2 ADC ports, 1 l2C port.
  • Integrated dual 40V input synchronous rectifier power supply, and built-in power filter, up to 8S lipo battery power supply, 5V SA /10V 3A output provides sufficient power, you can connect more external devices.

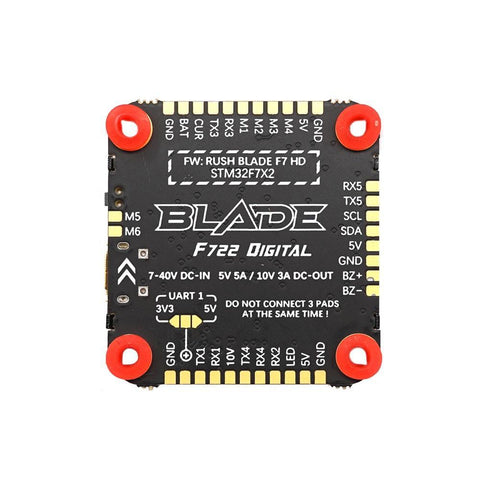

  • Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
  • Optimized for stack installation, the single-sided component placement method makes the thickness thinner, and the bottom is covered with complete copper to resist ESC Interference.

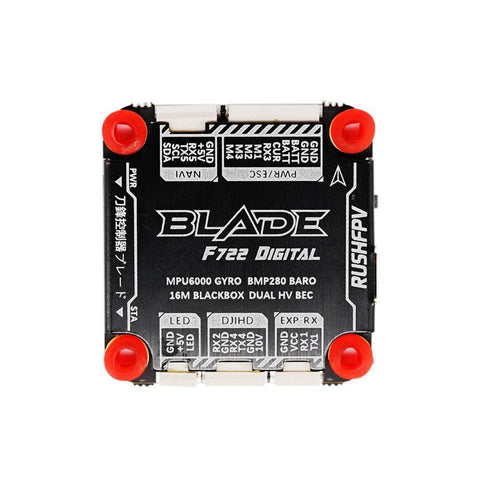

  • The full-covered lightweight metal shell protects internal electronic components and provides perfect heat dissipation.

Specifications

  • MCU: 216MHz
  • GYRO: MPU6000
  • OSD: Onboard
  • Input Voltage: 3-8S
  • BEC: 5V/5A 10V/3A
  • Mounting Holes: 30.5mm x 30.5mm

Wiring Diagram

Includes

  • 1 x RUSH BLADE F722 30x30 Flight Controller For DJI HD
  • 2 x 60MM LED/RX Cable
  • 1 x 60MM ESC Cable
  • 1 x 110MM NAVI Cable
  • 1 x 110MM Air Unit Cable
  • 5 x 8MM Grommet
  • 5 x 5MM Grommet
