Product Description:
Specifications

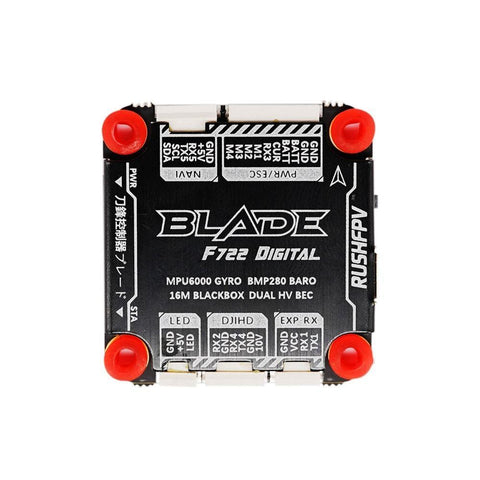

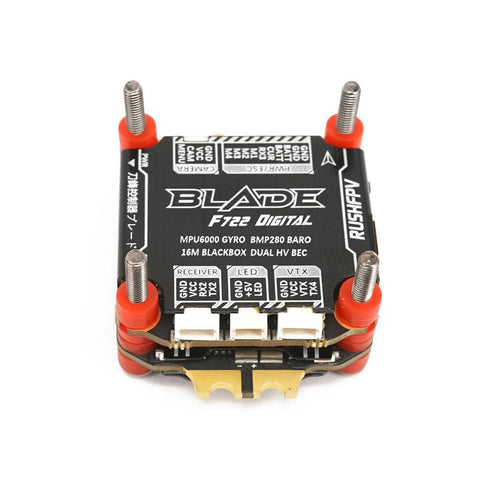

RUSHFPV RUSH BLADE F722 Flight Controller For DJI Digital FPV System
- MCU: 216MHz
- GYRO: MPU6000
- OSD: Onboard
- Input Voltage: 3-8S
- BEC: 5V/5A 10V/3A
- Mounting Holes: 30.5mm x 30.5mm
RUSHFPV RUSH BLADE 50A 3-6S BLHeli_32 4-in-1 ESC - Sport Edition
- Rated Current: 50A
- Peak Current:60A
- Input Voltage:3-6SLipo
- MCU:F051 48MHz
- PWM FREQ:48K
- LED Color: Blue
- Weight：16.2g
- Dimension:45*36.5*7.5mm
- BL32 FW: RUSH_BLADE_SPORT
RUSH PFB Power Filter Board
The 4 in 1 ESC can not achieve complete filtering due to its compact structure and high power. Excessive voltage peaks can cause interference to other components. Current surges generated during crashes can also have a strong impact on the MOSFET's and the power supply and can cause damage.
The RUSH PFB is small in size and can be installed at the tail of the ESC as a supplementary device for the filter. It is equipped with two 35V 330uF high-speed solid capacitors, and the parallel ESR is very low 5 m0 (TEST FREQ @10KHz)! It has a good filtering effect on high-frequency interference generated by ESC.
There are 3 high-power TVS diodes on board, which can cut voltage peaks at ns speeds, and absorb high-voltage surges caused by collisions of the propeller during a crash in time to protect the field-effect tube and other components from the surge. We recommend installing it in a high-power 6S brushless system.
Includes
- 1 x RUSHFPV RUSH BLADE F722 Flight Controller For DJI Digital FPV System
- 1 x RUSHFPV RUSH BLADE 50A 3-6S BLHeli_32 4-in-1 ESC - Sport Edition
- 1 x RUSH PFB Power Filter Board
