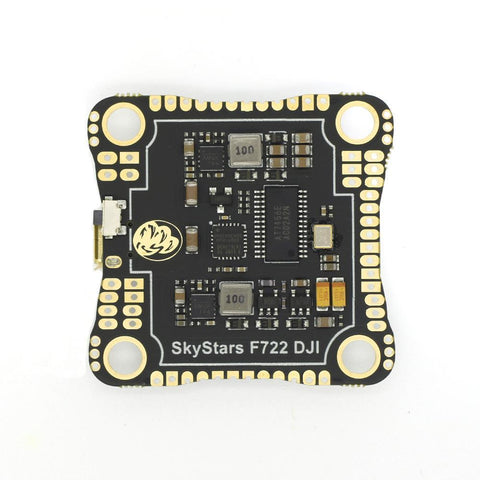

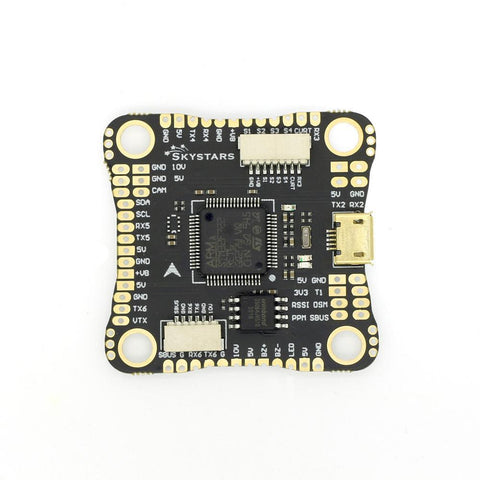

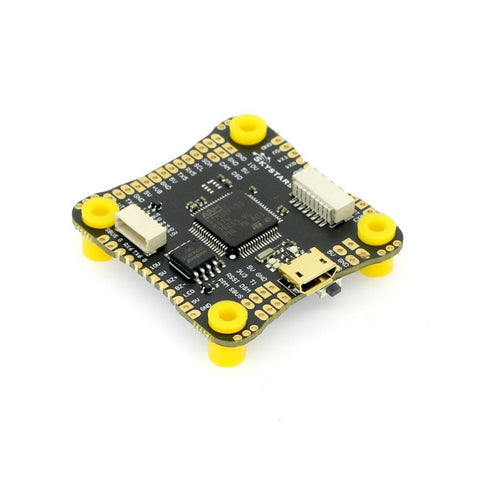

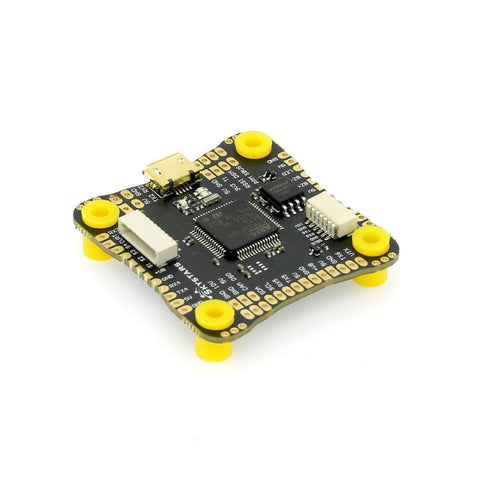

Skystar F722 Flight Controller DJI Compatible

  • $55.95


Like us? Please hit the Like button below:)


Product Description:

Specifications:

  •  MCU:  STM32F722RGT6 216MHz
  • IMU: MPU6000 (SPI)
  • OSD: Betaflight OSD &  DJI HD OSD (UART6)
  • 6 hardware UARTS (UART1,2,3,4,6,7)
  • 5V 3A & 10V 3A
  • Input Voltage: 3-6S Lipo
  • Blackbox: 8MB
  • Firmware: SKYSTARS F7HD
  • Dimensions: 38.5x40x6.2mm
  • Mounting Holes: Standard 30.5mm square to the center of holes
  • Weight: 6.2g



Features:

  • Designed the LED installation position in the four corners, support WS2812 Programmable LED.
  • Supports serial receivers (SBUS, iBus, Spektrum, Crossfire,PPM) . Support 3.3V Satellite Receiver.
  • High-performance / low-noise / high sensitivity IMU. MPU6000 with 6-axis gyro and

accelerometer.

.• includes a DJI HD cable in default

  • Input voltage12V-26V (3-6S)
  • Automatic voltage monitoring.
