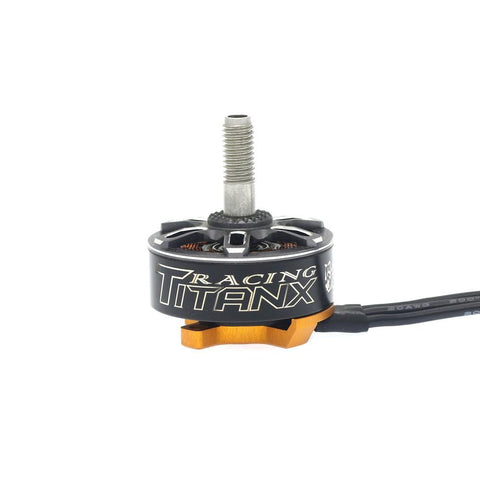

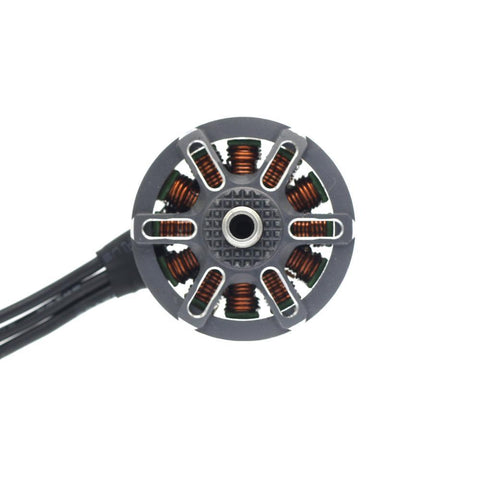

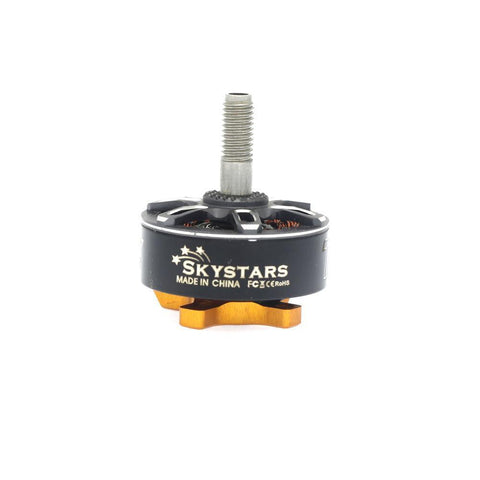

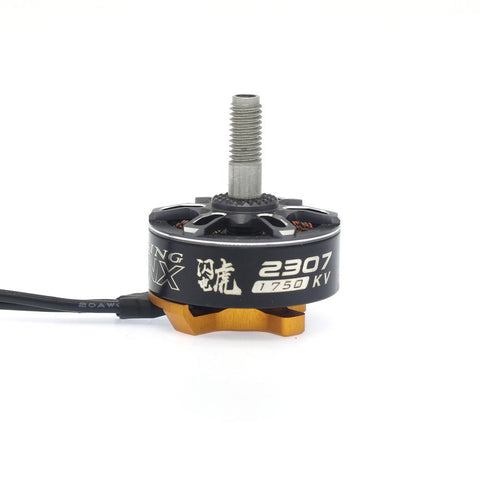

Skystar Titanx 2307-1750kv Motor for FPV Drone

  • $19.95

Delivery Estimate:


Like us? Please hit the Like button below:)


Product Description:

Parameter:

1 Bottom shaft fasten with a screw Easy to maintain.

2 Hight temperature resistant enamelled wires up to 220℃。

3 With imported NMB big bearings, the motor is runs smoother and stable.

4 Tough 7075 Aerospace aluminum shell and base is IMPACT resistant

5 Arc magnets make stable output at full throttle

6 Antislip design to maintain stability of propellers.



Specification:

Size :2307

KV:1750

Framework : 2N14P

Stator Diamter : 23mm

Stator Thickness: 7mm

No.of Stator Poles: 14

Motor Dimension(Dia.*Len) :  34.5X28mm

Weight(g): 36.5

No Load Current 10V(A) : 1.36

No.of Cells(Lipo) : 3-6s

Max Continuous Power(W)180S : 624

Internal Resistance : 55mΩ

Max Thrust : 1236g



Package Included:

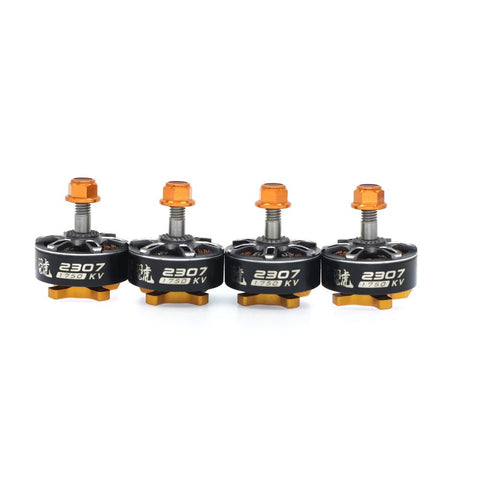

1/4 pcs Skystars 2307 1750KV Motor

1x Motor Nut

4x Screws
