SkyStar KM60 4IN1 60A 3-6S ESC 30.5x30.5mm

  • $87.95


Like us? Please hit the Like button below:)


Product Description:

SkyStar KM60 4IN1 60A 3-6S ESC 30.5x30.5mm

  1. Excellent over-current capability.

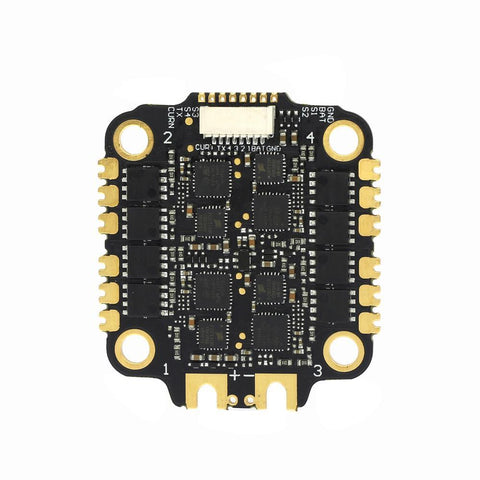

By adopting the best PCB material and PCB production process. Such as application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB. Together with the 6-layer layout design of the board, compared with other common 4 layers, It can withstand bigger current.



  1. Extreme stably support 6S LiPo battery

By use of 24 pcs of new Toshiba standard 40V 5x6 Mosfet & imported from USA or Japan electronic materials. Plus advanced lead-free SMT Processing technology. It makes ESC can fully support 6s battery and get better performance.



  1. Excellent heat dissipation performance

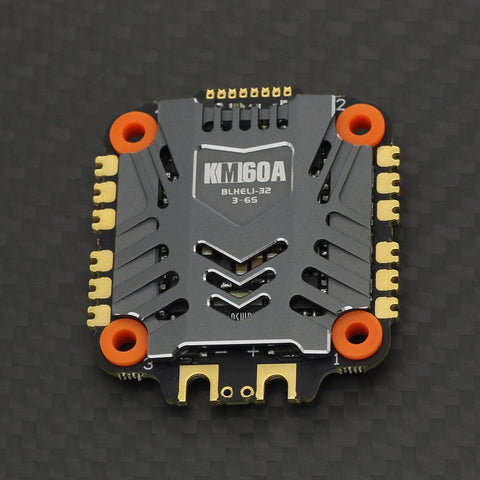

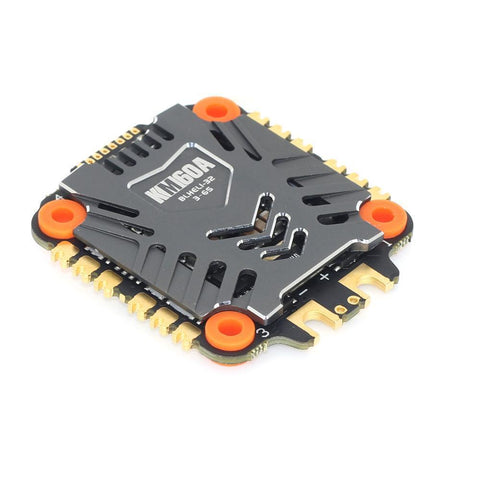

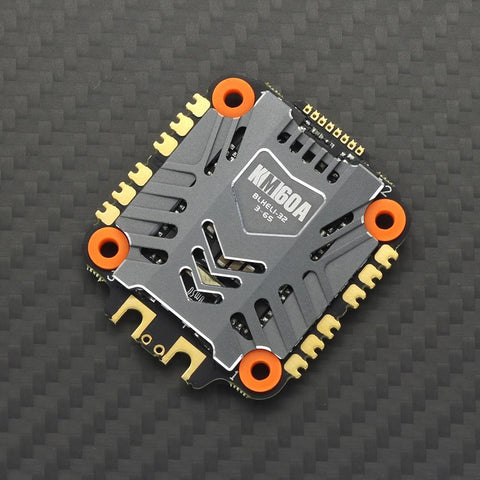

The CNC hollow aluminum alloy shell use, Not only good for heat dissipation but also gets a beautiful appearance.



  1. Better control performance

Flashed with the latest Blheli_32 firmware in factory, support telemetry functions (including voltage, RPMS & current )



Specifications:

  • Input voltage: 3-6S LiPo
  • Con.Current: 60A
  • Peak Current: 80A≥ 10S
  • Firmware: BLHeli_32
  • Support: Dshot 600/1200

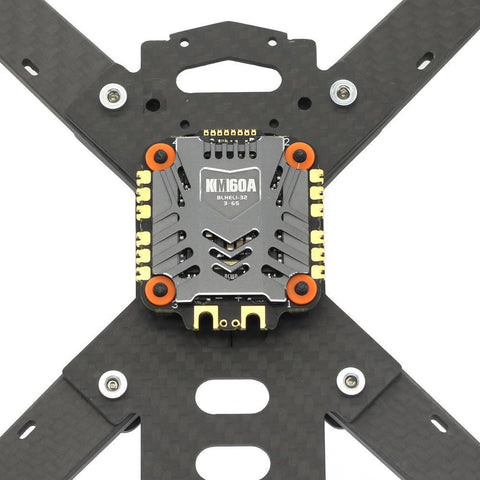

  • Mounting hole: 30.5mm/M3
  • BEC: No
  • Product size: 41*46*7.6mm

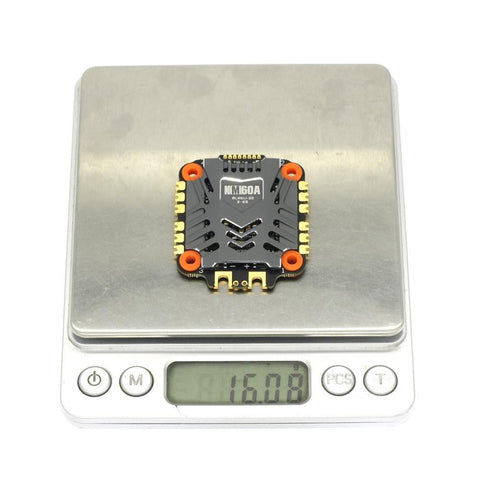

  • Weight: 18g



Included:

  • 1 x Skystar KM60 60A 3-6S 4 in 1 ESC
  • 4 x Damping Rubbers (M3x8mm)
  • 4 x Damping Rubbers (M3x3.5mm)
  • 1 x XT60 connector and wires
  • 2 x 8pin wiring harness (1x 70mm,1x 50mm)
  • 1 x 35v 560uf Capacitor
