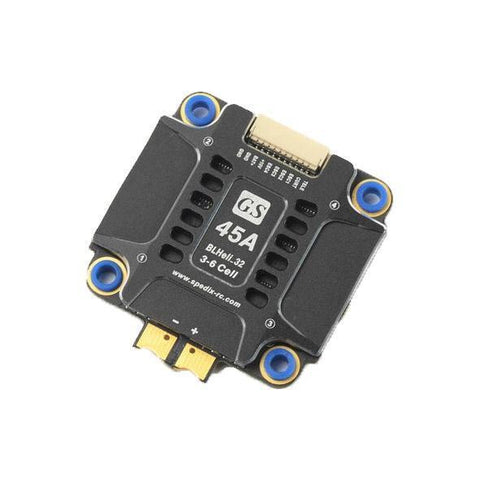

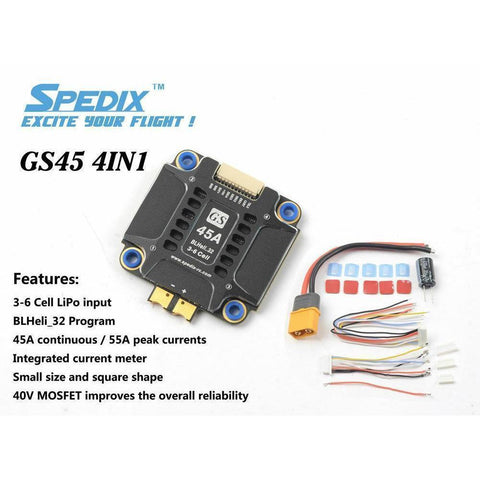

Spedix GS45 4IN1 45A 3-6S ESC 30.5x30.5mm
We incorporated whole new design ideas to significantly improve our 4 in 1 product. It makes our product stronger, smaller, and better in performance. The core features of the product are listed below.

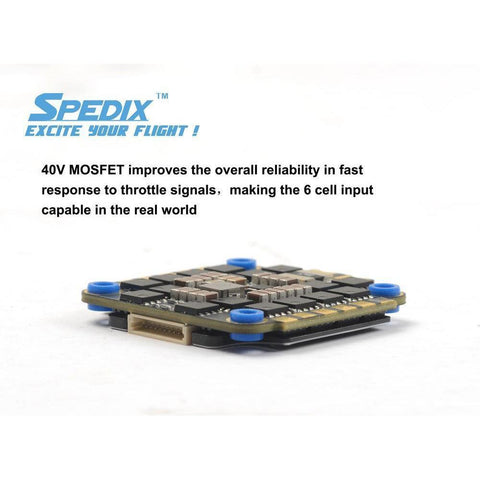

- High reliability achieved by PCB design and manufacturing process. Eliminated the possibilities of internal breakage in manufacture and application, greatly improved reliability and survival rate.
- To take users’ installation requirements into consideration by limiting the highest parts on PCB to 1.6mm. By this design, it makes the flight tower low profile, and prevent interferences between wires, ESC, and flight controller.
- The potential interferences between standoffs and electronic parts were also taken into consideration in design. Fragile parts are arranged far away from mounting holes.
- Silicone ring inserts can insulate standoffs and ESC, and prevent the impact of standoffs on PCB and electronic parts during a crash.
- The small size and square shape board are compatible with most frames.

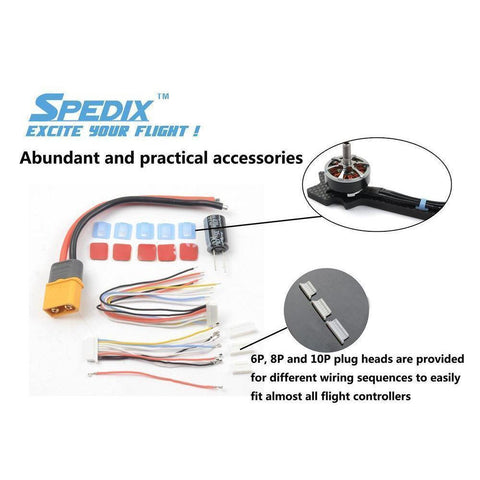

- The product comes with abundant and practical accessories. All 4 in 1 ESCs can use 3 different plug head in the package. Users can easily assemble the plug to fit different port definitions and wiring sequence of various flight controllers.
- Input:3-6 Cell LiPo
- Continuous Current: 45A
- Burst Current: 55A≤10S
- Current Detection: Yes
- Firmware: BLHeli_32
- Dimensions: 40.5x42x6.5mm
- Mount holes: 30.5x30.5mm
- The diameter of Mount holes: 3mm
