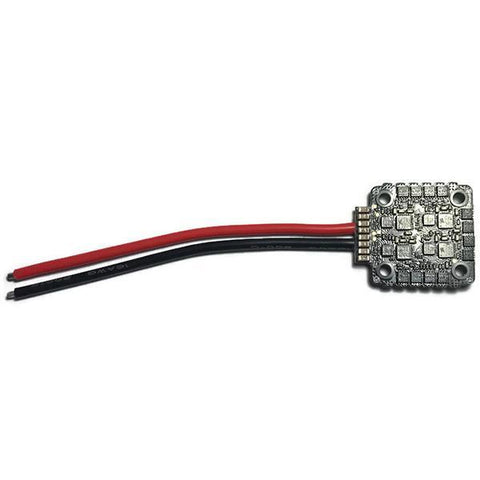

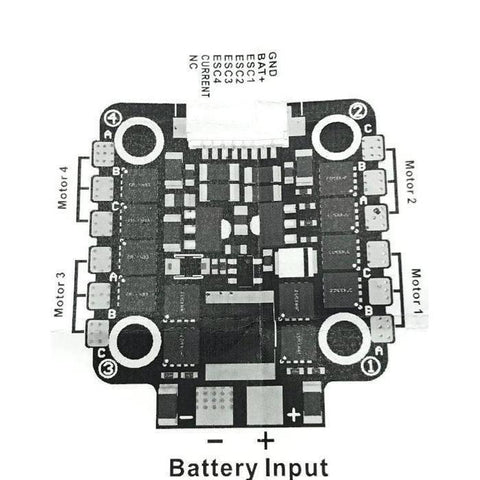

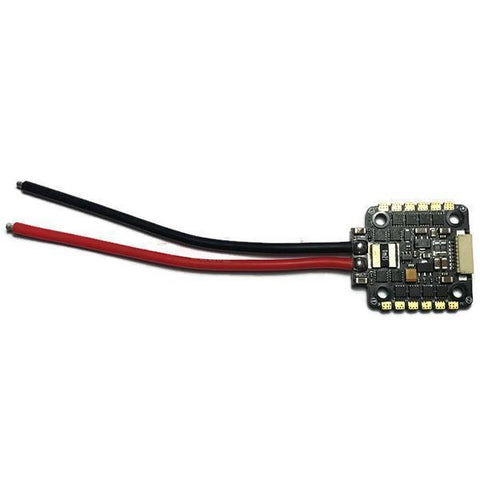

Spedix IS25 4IN1 25A 2-5S ESC 20x20mm

  • $55.00


Like us? Please hit the Like button below:)


Product Description:

Spedix IS25 4IN1 25A 2-5S ESC 20x20mm



Specifications:

  • Continuous Current: 25 amps
  • Burst Current: 35 amps≥10 S
  • Input Voltage: 2-5 Cell LiPo
  • BEC: No
  • Current Detection: Yes
  • Dimensions: 29x32x5mm
  • Mounting pattern: 20x20mm
  • Mounting Holes: 3.7mm (M3 shoulder washers included)
  • Firmware: BLHeli_S(QH-15)
  • Input signal: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300 & Dshot600

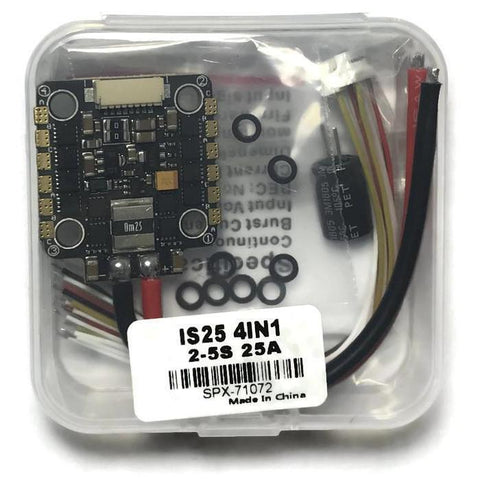

Included:

  • 1x 25amp 4in1 ESC
  • 10cm red & black 16AWG wire
  • 10x M3 shoulder washers (8 required, 2 spare)
  • 25v 330μF capacitor
  • 2x 1mm JST-SH 8-pin connectors
  • 1x Datasheet



Notice:

  1. If 5S is used, it's recommended to solder the included capacitor.
  2. The amperage meter scale needs to be set to 200 for the current sensor to work.
