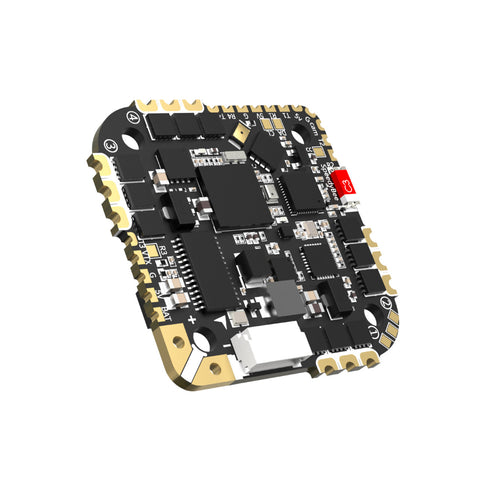

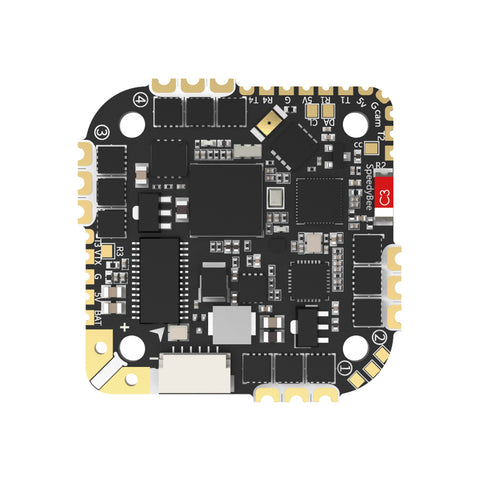

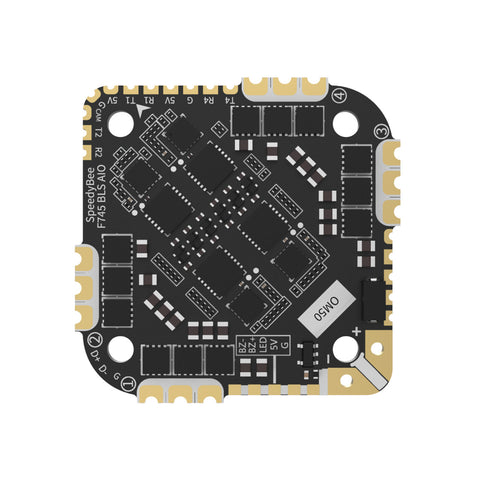

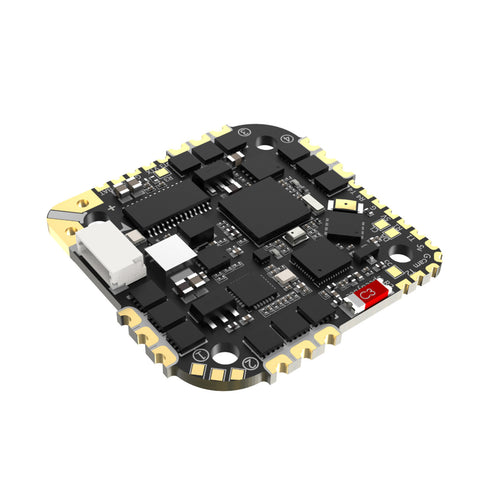

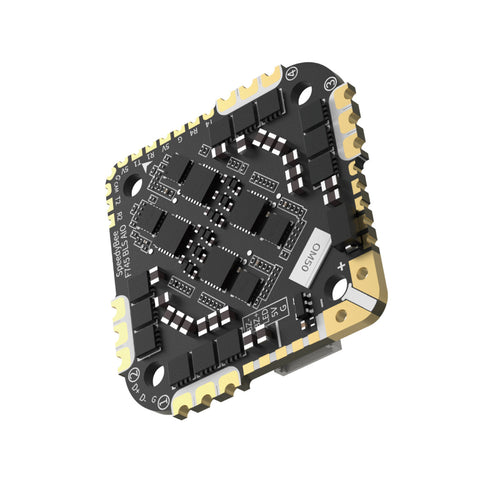

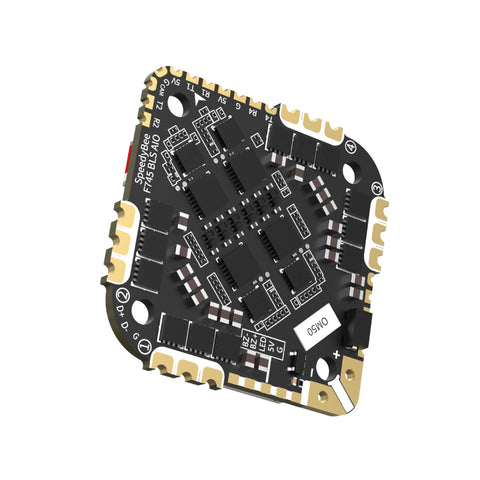

SPEEDYBEE F745 35A AIO Flight Controller 3-6S BLS 25.5x25.5mm

  • $189.99
  • Save $10.00


Like us? Please hit the Like button below:)


Product Description:

SPEEDYBEE F745 35A AIO Flight Controller 3-6S BLS 25.5x25.5mm

Specifications

Product Name SpeedyBee F745 35A BLS AIO
MCU STM32F722
IMU(Gyro) BMI270
USB Port Type DM DP pad external USB
Barometer BMP280
OSD Supported
BLE Bluetooth Supported. Used for configuration
Flash FC Firmware Wirelessly Supported
Download/Analyze Blackbox Supported
DJI Air Unit Soldering Pads Supported
Flash(for BlackBox) 8MB
Current Sensor Supported, Scale=2900
BetaFlight Camera Control Pad Yes(CC pad)
Power Input 3S - 6S Lipo
5V Output 4 groups of 5V output. The total current load is 2.5A.
9V Output None
3.3V Output Supported. Up to 500mA current load.
ESC Signal Pads M1 - M4
UART Full UART * 4(UART1, UART2, UART3,UART4)
ESC Telemetry UART None
I2C Supported.
LED Pad Used for WS2812 LED
Buzzer BZ+ and BZ- pad used for 5V Buzzer
BOOT Button Used to enter DFU mode
RSSI Input Not supported
SmartPort Use any TX pad of UART for the SmartPort feature.
Supported Flight Controller Firmware BetaFlight(Default), EMUFlight, INAV
Firmware Target Name SPEEDYBEE F745AIO
Mounting 25.5 x 25.5mm, 3mm hole diameter
Dimension 36.5mm(L) x 36.5mm(W) x 1.6mm(H)
Weight 10.1g
