iFlight SucceX-E Stack F4 Flight Controller OSD + 45A 2-6S ESC 30.5x30.5mm

  • $99.95


Like us? Please hit the Like button below:)


Product Description:

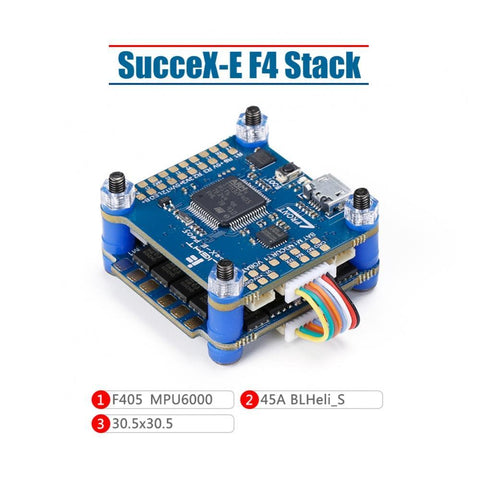

iFlight SucceX-E Stack F4 Flight Controller OSD + 45A 2-6S ESC 30.5x30.5mm

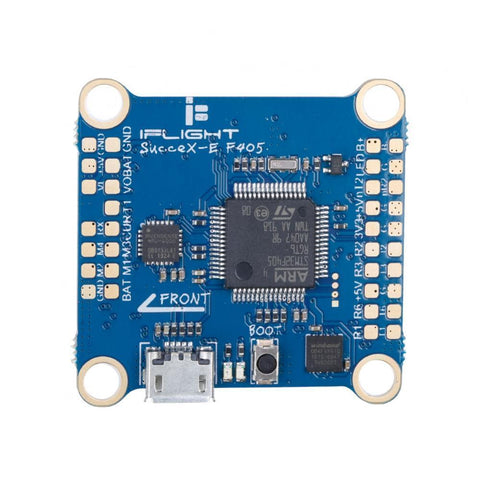

FC // SucceX-E F4 V2.1 Flight controller



  • MCU:STM32F405
  • Gyro:MPU6000
  • Betaflight OSD:YES
  • Blackbox:8MB
  • 4X Uarts
  • 8 x Dshot/Proshot/Oneshot output
  • 8 x individual ESC power/ signal pads
  • 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX
  • VTX telemetry: YES
  • WS2812 led Strip:YES
  • Baro: yes BMP280(I2C)
  • Beeper:YES
  • Input:2-6S(Max 8S)
  • BEC:5V / 3A
  • Firmware target : IFLIGHT_SUCCEX-E F4
  • Mounting:30.5*30.5mm,φ4mm with Grommets φ3mm
  • Dimensions:36*36mm

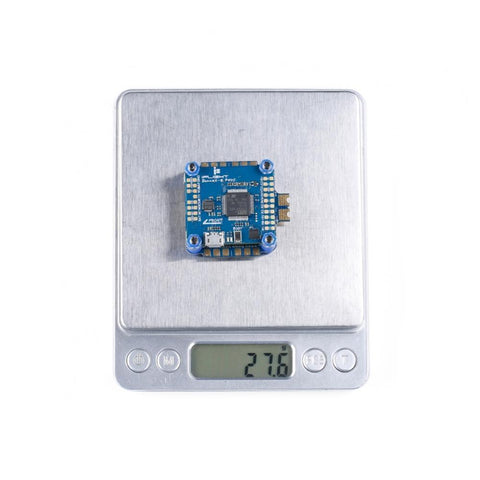

  • Weight:6.6g

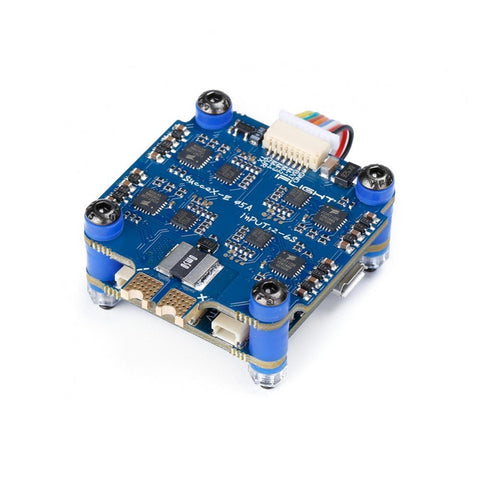

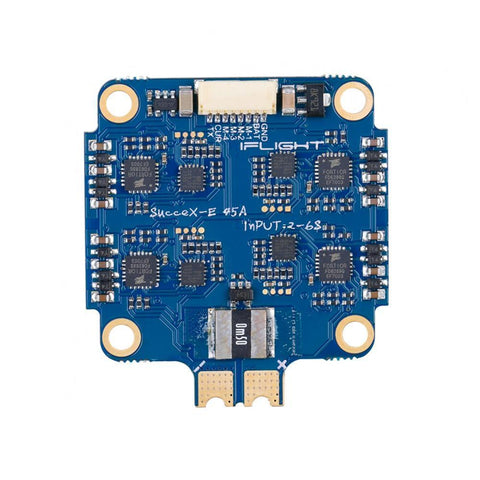

ESC // SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC

  • Dimension: 40*43mm
  • Mounting Holes: 30.5*30.5mm/Φ3mm
  • Weight: 14.4g
  • Supports 2-6S Lipo input
  • EFM8BB21 MCU, 24Mhz Runs BLHELI 16.X Firmware
  • Current sensor: YES
  • BEC: NO
  • Supports: DShot150/300/600/1200/MultiShot/OneShot etc.
  • Target: G-H-30 BLS 16.7

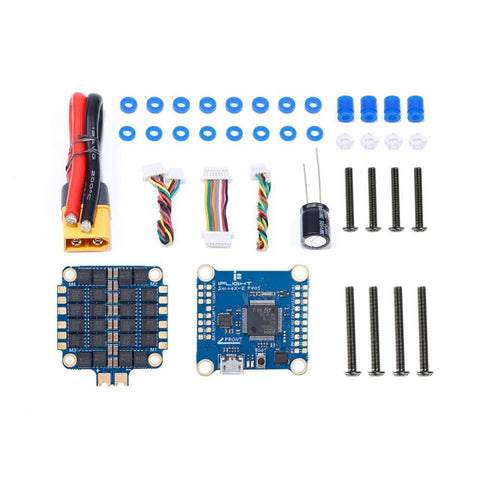

Package Included:

  • 1x  SucceX-E F4 V2.1 Flight controller
  • 1x 45A 4in1 ESC
  • 1x Wire harness
