Product Description:

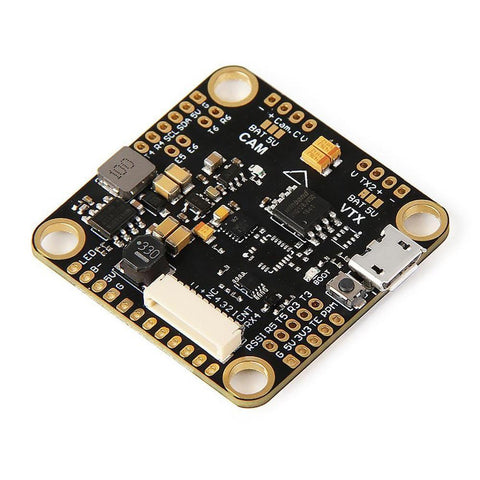

T-Motor F4 Flight Controller 30.5x30.5mm

The T-Motor F4 Flight Controller comes with an LC filter, which is great for eliminating interference to your VTX or other equipment. Equipped with a 5V/2A BEC allows hooking up of receivers, cameras, and other 5v compatible gear. The F4 is loaded with 6 UARTs and is specially optimized to fit the F55A PRO II ESC. The user also has the choice of two gyros - the ICM20602 for high refresh rates or the MPU6000.



Specifications

  • Input Voltage: 2-8S (8.4-33.6V)
  • MCU: STM32F405RGT6
  • IMU: ICM20602
  • OSD: Yes
  • Blackbox: 16MB Onboard Flash
  • UARTs: 6
  • ESC Connections: 6
  • Firmware: BetaFlight Target: TMOTOR F4
  • BEC: 5V 2A
  • LC Filter: Yes
  • Current Sensor: Esc Telemetry / Current ADC
  • Buzzer: Pads
  • Barometer: No
  • Dimensions: 37x37x7mm
  • Mounting Pattern: 30.5x30.5mm
  • Weight: 7g

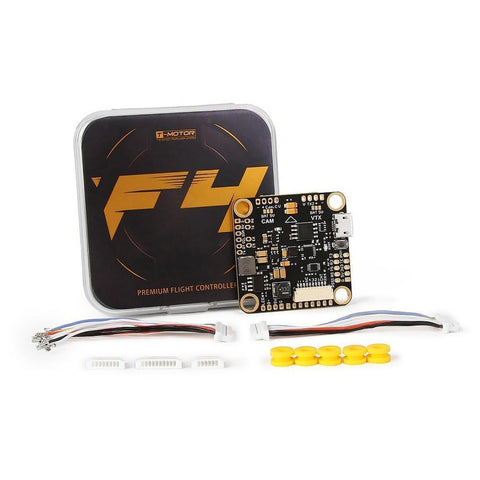

Includes

  • 1x T-Motor F4 Flight Controller
  • 2x FC to ESC Cable
  • 4x Vibration Dampeners
