T-Motor F7 Flight Controller + F55A PRO II 3-6S 4IN1 ESC Stack 30.5x30.5mm

  • $229.99
  • Save $40.00


Like us? Please hit the Like button below:)


Product Description:

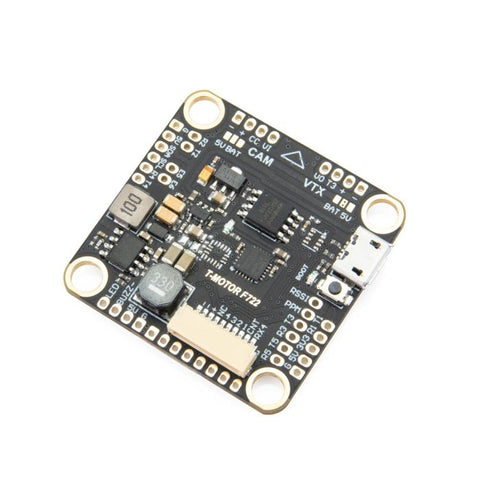

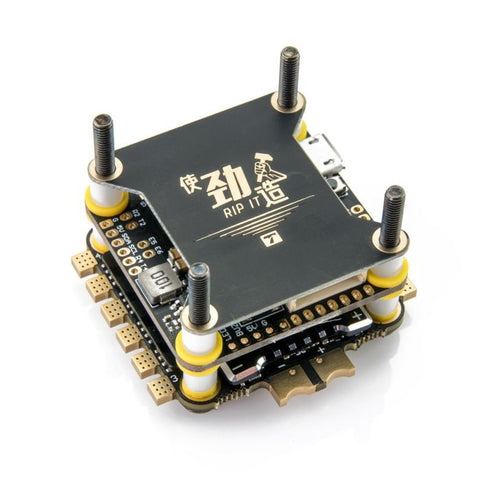

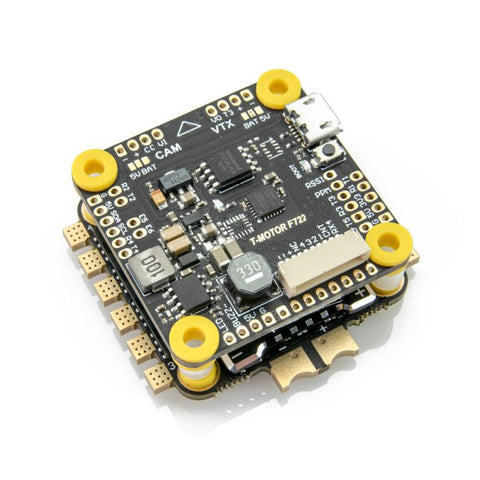

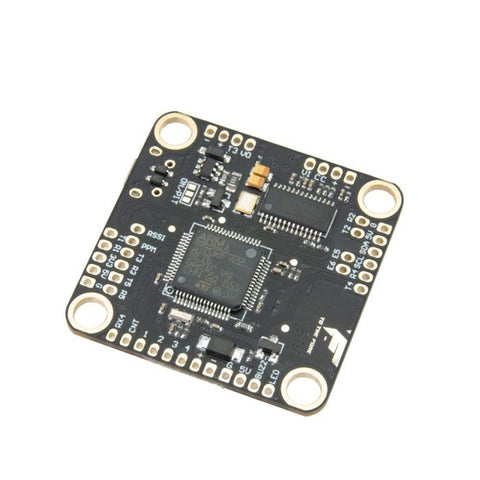

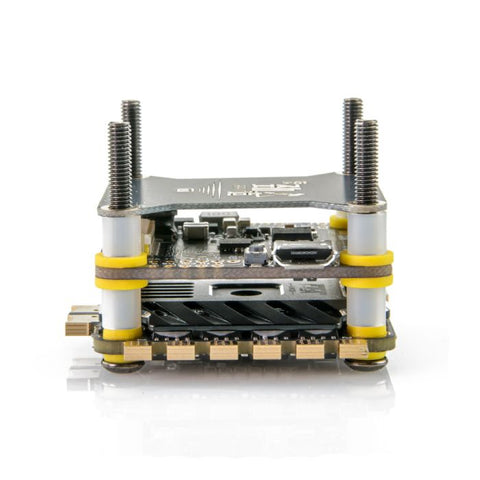

T-Motor F7 Flight Controller + F55A PRO II 3-6S 4IN1 ESC Stack 30.5x30.5mm

Specifications

  • MCU: STMF722RET6
  • Gyro: MPU6000
  • Memory: 16M
  • Input Voltage: 12v-25-2v (3-6S)
  • BEC: 5V/2A
  • Dimensions: 37mm x 37mm
  • Mounting Holes: 30.5mm x 30.5mm
  • Weight: 7.4g
  • Firmware Target: TMOTORF7 (Betaflight)

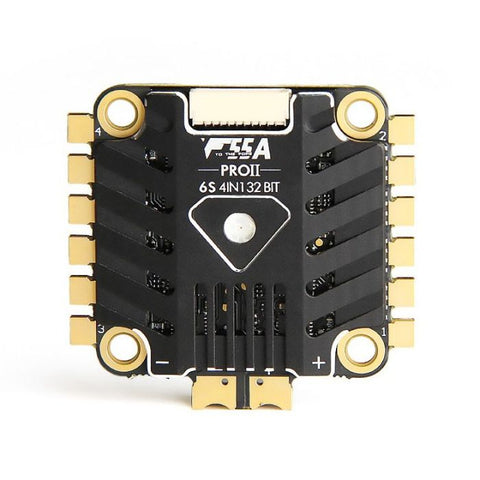

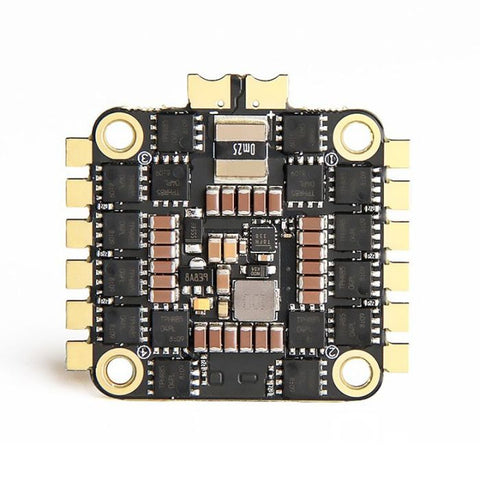

T-Motor F55A Pro II 55A 3-6s BLHeli32 4-in-1 ESC w/ BEC

The F55 Pro II updates the original F55 with a new heatsink design, LED, and increased the BEC current to 10V@2A.

Fully capable of pushing 6s with 75A burst and a sustained 55A current draw. Equipped with the latest in ESC technology such as 32-bit capability and BLHeli32 firmware.



Specifications

  • Continuous current: 4*55A
  • BLHeli_32 32bit
  • Burst current: 4*75A
  • BEC Output: 10V @2.0A
  • Size: 45x41x7.3mm
  • Weight: 17.5g (Including Heatsink)
  • Support DSHOT150/300/600/1200

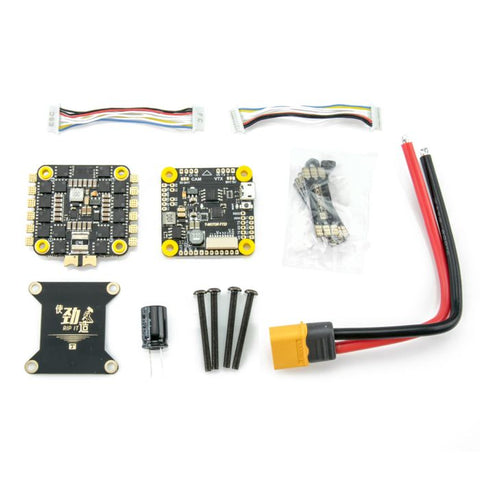

Includes

  • 1x T-Motor F7 Flight Controller
  • 1x T-Motor F55A Pro II 55A 3-6s BLHeli32 4-in-1 ESC w/ BEC
  • 1x XT-60 Pigtail
  • 1x Insulation Board
  • 4x Link Board
  • 4x M3x30 Screw
  • 2x FC to ESC Cable
  • 4x Non-Slip Nut
  • 16x Spacers
  • 1x Capacitor
