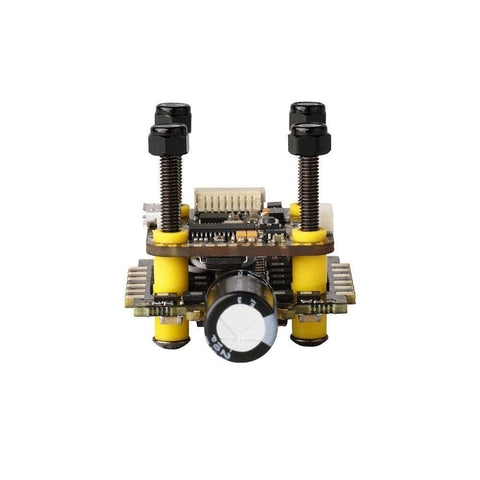

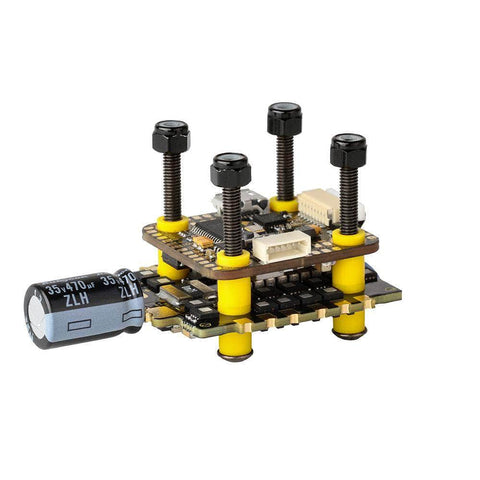

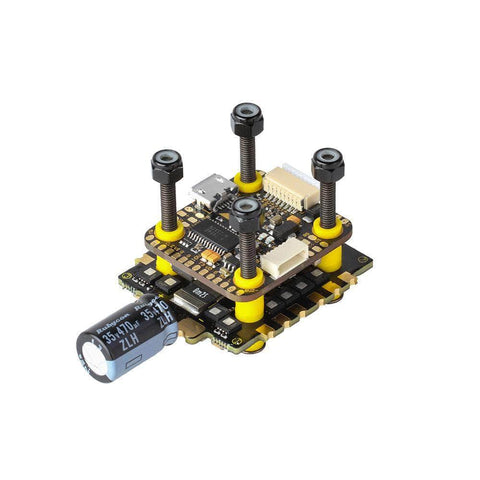

T-Motor Mini F7 Stack + F45A 3-6S BLHeli_32 4IN1 ESC DJI 20x20mm

  • $218.99
  • Save $41.00


Like us? Please hit the Like button below:)


Product Description:

T-Motor Mini F7 Stack + F45A 3-6S BLHeli_32 4IN1 ESC DJI 20x20mm

Features

  • Dual BEC, DJI Plug and Play Ready
  • 45A ESC
  • F7 Flight Controller



Specifications

T-Motor F7 Mini Flight Controller

  • Input Voltage: 3-6S
  • Firmware: TMOTORF7 (STM32FX2)
  • BEC: 5V/2A, 10V/2A (For DJI HD VTX)
  • Main Control: STM32F722
  • Gyroscope: MPU6000
  • RAM: Onboard 16M
  • OSD: Support
  • Barometer: No
  • Mounting Pitch: 20*20mm
  • Weight: 5.1g



T-Motor Mini 45A ESC

  • Input Voltage: 3-6S
  • ESC Firmware: BLHeli32
  • Telemetry: Supported
  • Galvanometer: Supported
  • DSHOT 150/DSHOT 300/DSHOT 600/PROSHOT 1000
  • Backwards Compatible with Oneshot125/Oneshot42/Multishot
  • Betaflight Galvanometer Ratio: 200
  • Mounting Pitch: 20*20mm
  • Weight: 9.2g



Includes

  • 1x T-Motor Mini F7 3-6S 20x20 Stack Combo (F7 FC / 45A ESC)
