TBS RHCP 5.8G Patch Antenna (SMA)

  • $19.90

Delivery Estimate:


Like us? Please hit the Like button below:)


Product Description:

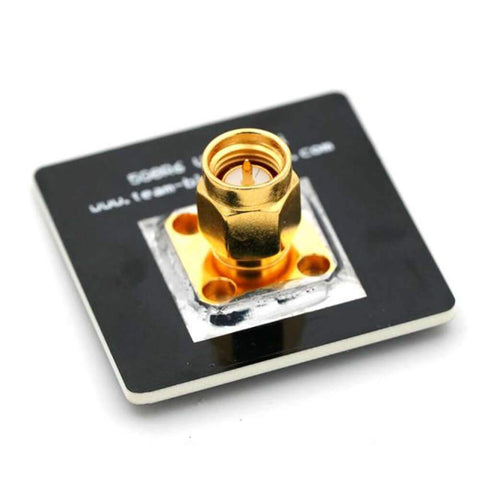

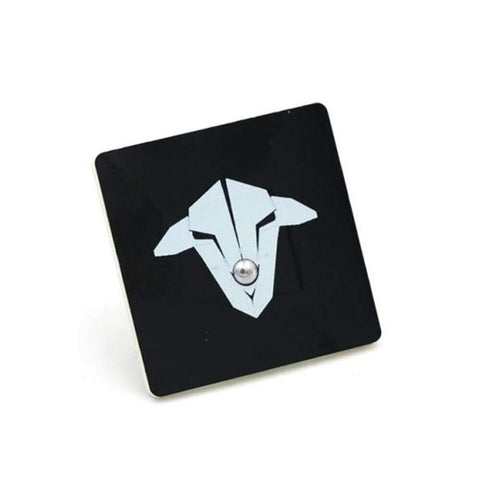

TBS RHCP PATCH 5.8G Antenna SMA

Manufactured by Team BlackSheep, this antenna is your cheap entry into circular polarization. The 5dbi gain provides enough beamwidth to comfortably mount this patch antenna directly to your goggle-receiver.

The typical range for this antenna is a very comfortable 1.5km on a 200mW transmitter (which translates to 3-4km if we use the same metrics as our competition). It thus matches or outperforms all existing Cloverleaf / Skew-Planar-Wheel combinations, but it only has a 110 degree coverage. It's more rugged and durable than all of the other receiver antennas too, and lighter.

SPECIFICATIONS:

  • 5dBi Gain
  • Circular Polarization
  • 5700 - 5900 MHz working frequency
  • 110° beamwidth
  • 35 x 35mm
  • SMA connector
