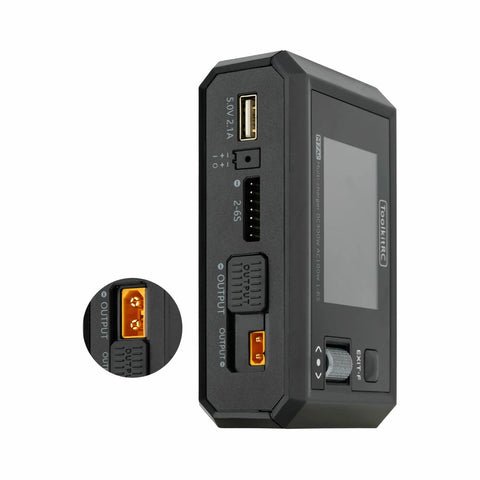

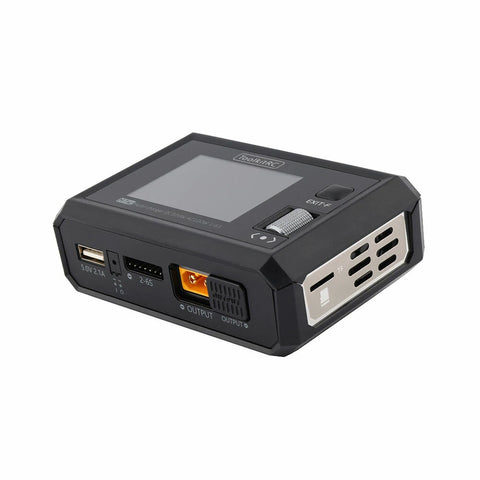

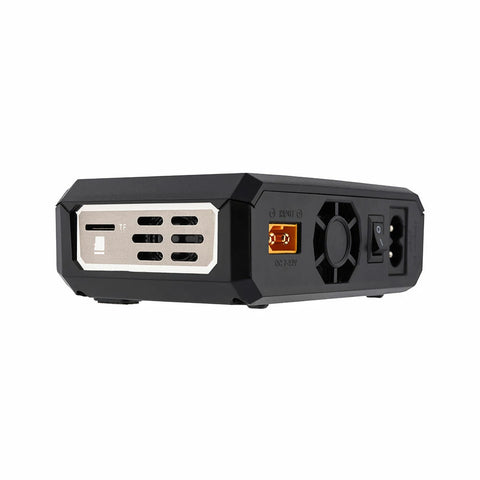

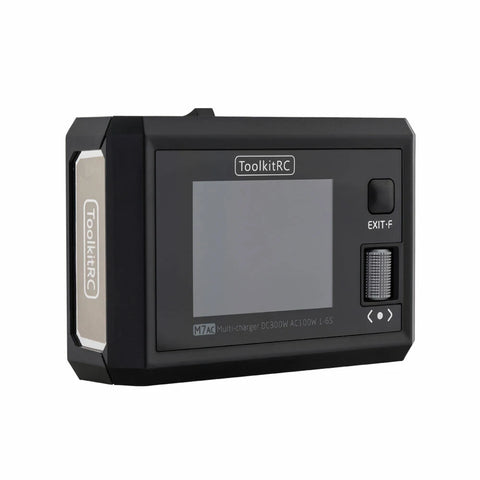

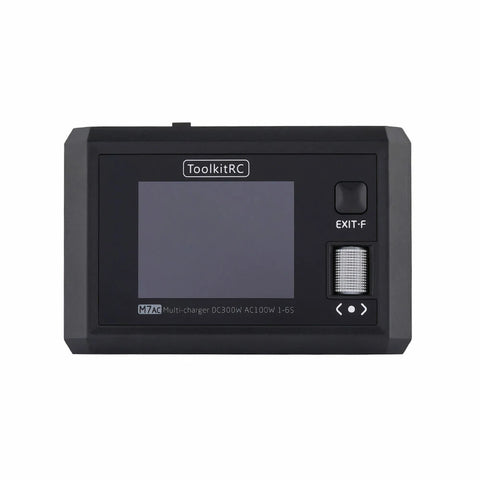

ToolKitRC M7AC Charger Discharger 1-6S Battery 300W 15A AC DC With XT30 XT60 AU Plug

  • $139.99
(Ex GST: $127.26)



ToolKitRC M7AC Charger Discharger 1-6S Battery 300W 15A AC DC With XT30 XT60 AU Plug

Specification:

  • input voltage: AC 100-240V MAX 100W 1.5A / DC 7.0-28.0V @MAX 20A
  • battery type: Lipo LiHV LiFe Lion LTO@1-6S NiMh @1-16S Pb @1-10S
  • balance current: 800mA @ 4.2V
  • charging power: 300W @MAX 15A
  • discharge power: 300W @MAX 15A Recycle mode / 15W@3A Normal mode
  • USBA: 10W@5.0V or Upgrade

Measurer:

  • PWM: 880-2200us @ 20-400Hz
  • PPM: 880-2200us * 8CH @ 20-50Hz
  • SBUS: 880-2200us * 16CH @ 20-100Hz
  • voltage: 1.0-5.0V @ 1-6S
  • Internal resistance: 0.1 mR-99mR @ 1-6S
  • ESC: 300W @ 15A

General:

  • product size: 112*73*38mm
  • product weight: 245g
  • packing size: 144*125*43mm
  • packaging weight: 380g
  • LCD: IPS 2.4 inch LCD 320*240 resolution
  • TF Card: 128MB-16GB

Output:

  • PWM: 500-2500us @ 20-1000Hz
  • PPM: 880-2200us * 8CH @ 20-50Hz
  • SBUS: 880-2200us * 16CH @ 20-100Hz
  • power supply: 1.0-28.0V @0.5-15A mode:CC CV
  • Overcurrent response: <5ms

Packaging included:

  • 1x ToolkitRC M7AC Charger AU Plug
