ToolkitRC P200 Mini 200W 10A Power Supply

  • $156.95
  • Save $10.00


Like us? Please hit the Like button below:)


Product Description:

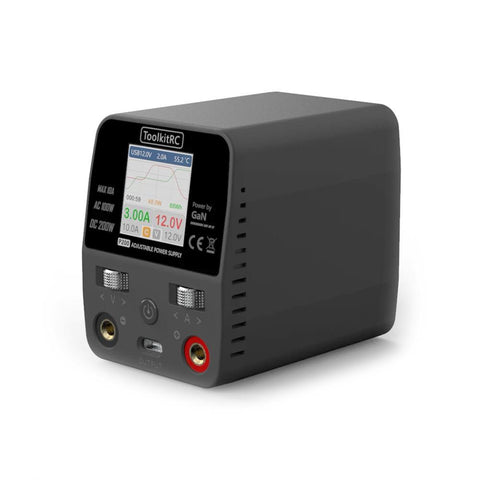

ToolkitRC P200 Mini 200W 10A Power Supply

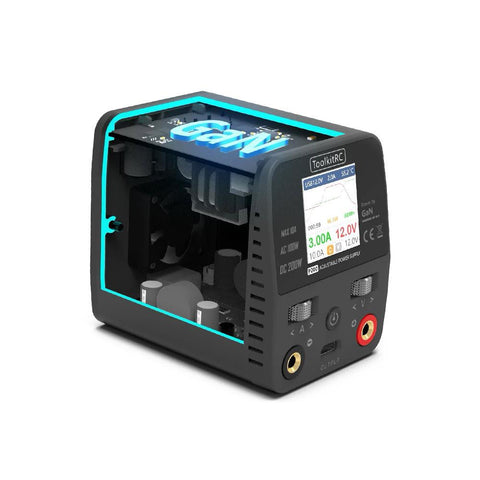

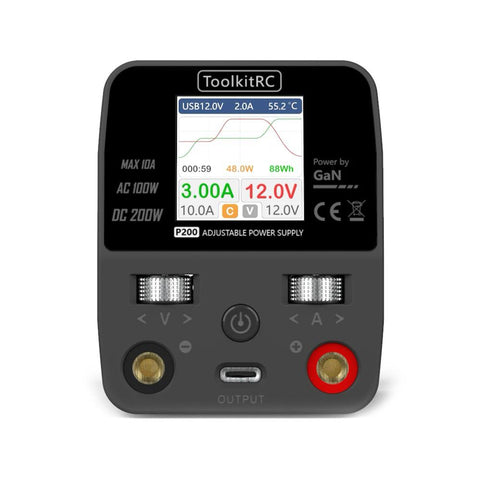

The ToolkitRC P200 Mini Power Supply is a mini desktop power supply with GaN Technology. With its IPS wide-angle display and simplified interface, this power supply is ideal for your charging needs. The scroll wheel allows for better control and years of trouble-free use!

Features

  • Constant Voltage and Current Output Mode
  • Simplified interface with a curve display
  • TypeC output multi-protocol interface
  • 240 X 240 High-Resolution Display
  • 65W TypeC Fast Charge Output
  • Scroll wheel for precise control
  • IPS Wide-angle viewing
  • GaN Technology
  • Compact Size



Specifications

General

  • USB port: TYPE-C Fast charge, upgrade
  • Main port: 4.0mm banana female port
  • LCD: IPS 1.54" 240*240 resolution
  • Product size: 84*63*78 mm
  • Pack size: 160*150*73 mm
  • Product weight: 360g
  • Pack weight: 670g

Parameters

  • Main output: 1.0-10.0A @MAX AC 100W / DC 200W; 1.0-30.0V @MAX AC 100W / DC 200W

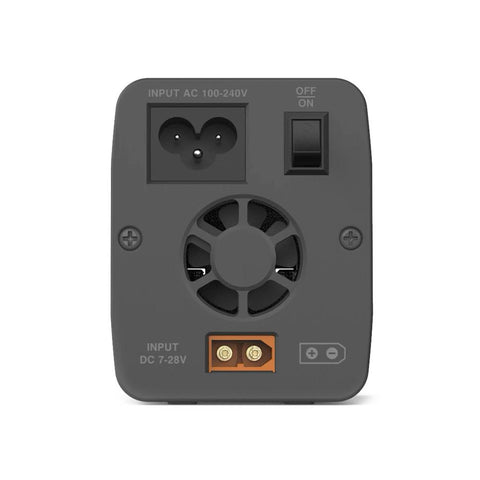

  • Input voltage: AC 100-240V@MAX 100W / DC 7-28V@MAX 10A 200W
  • TYPE-C protocol: PD 3.0/PD2.0/PPS/QC4/QC3.0/QC2.0
  • Protection time: <1ms (Short circuit, OC, OV)
  • AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
  • TYPE-C output: 5.0-20.0V @MAX 65W
  • Control cycle: 8ms



Includes

  • 1x ToolkitRC P200 Power Supply
  • 1x Banana connector to Aligator clips power cable
  • 1x Banana connector to an open-end naked cable
  • 1x C Type to USB Cable
