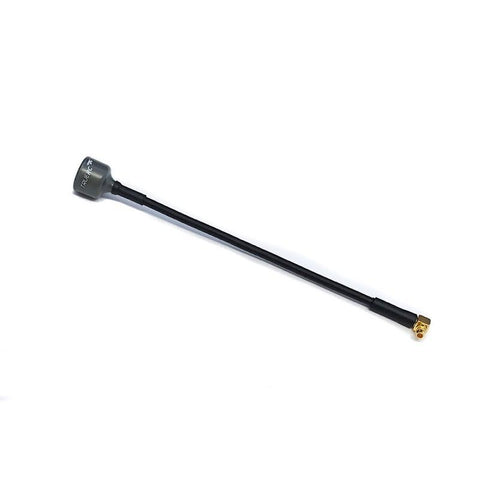

TrueRC SINGULARITY 5.8 RHCP Long Version Antenna (1pc)

  • $30.95

Delivery Estimate:


Like us? Please hit the Like button below:)


Product Description:

The TrueRC TrueRC Singularity 5.8 Micro Antenna is the next evolution of the world's most popular FPV antenna. The Singularity 5.8 has the same incredible performance as the original AXII antenna, but now 1/2 the size and weight!

The Singularity 5.8 antenna is an original design that features a new RF pathway technology (unique hybrid network) allowing it to be incredibly lightweight (1.6g) making it the smallest and lightest 5.8GHz CP antenna.

Even though the Singularity 5.8 is both small and lightweight, it does not sacrifice on performance. In fact, it outperforms most other antennas in all categories. Precision engineering has given this antenna a near perfect Cross-Polar Rejection resulting in a true circularity. This means an RHCP Micro AXII antenna rejects nearly 100% of LHCP signals, giving you a crystal clear image free of multi-pathing noise. On top of that, the Micro AXII has a high max gain of 1.6dBic enabling better range and penetration. It has a wide bandwidth covering the popular FPV 5GHz band from 5.5GHz-6.0GHz, ensuring you have a clear and strong signal no matter which frequency you're on.

The Singularity 5.8 is designed to be ultra durable and put up with the beatings FPV pilots put on their antennas. The entire antenna array is securely protected inside the injection molded outer casing. The outer shell case is made from an impact resistant polycarbonate material, and it is sealed shut to guard the antenna elements inside.

Specifications

  • Gain: 1.6dbic
  • Cross-Polar Rejection: -10 to -25dB (2.4%)
  • Bandwidth: 5.5GHz-6.0GHz
  • Radiation Efficiency: 99%
  • SWR: <=1.5:1
  • Weight: Different depending on variant chosen. See Pictures
Antenna Length (Entire antenna) (cms)
MMCX Long 8.15±
UFL Long 8.35±
SMA Long 7.21±
  • 1x TrueRC Singularity 5.8 Micro LONG Antenna
