CR-6 MAX FDM 3D Printer Features

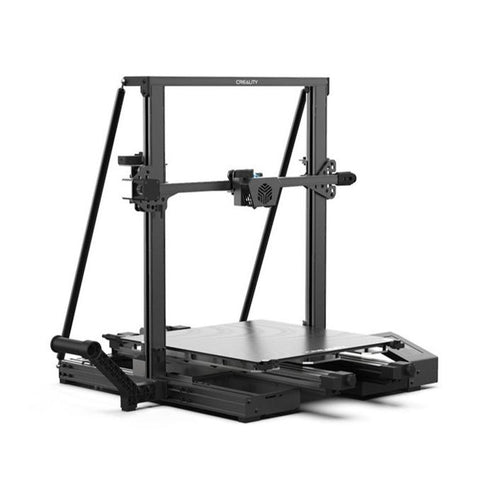

The Golden Triangle
Holding up the towering Z-axis are the supporting rods that Creality has previously dubbed “The Golden Triangle”. These metal supports help to reduce vibrations as the bed is moving back and forth.
The appearance of these is a welcome and means that you will be able to print taller without having to worry about excessive Z-wobble as you reach the upper limits of the build volume.
Automatic Leveling System
The CR-6 Max 3d printer features the same innovative leveling system as the CR-6 SE, using a force-based sensor. The Max will simply touch the nozzle to the bed at specific points, and a strain sensor on the hot end will detect the exact point at which the nozzle touches the glass.
This system is nice for a number of reasons. For one, there is no extra sensor probe, meaning you don’t need to calibrate any offsets other than the initial Z height to get the right “squish” in your first layer. Also, the automatic leveling system does away with the knobs on the underside of the bed, which will be a relief for anyone who has experience trying to level such large-format machines.
Additional features the Creality CR-6 Max 3d printer will include:
Modular Nozzle: Creality designed the nozzle with modularity in mind. Users can disable the nozzle and change the heat block, heat sink, Teflon tube, or the nozzle tip with the included spares.
Extruder: The redesigned extruder should allow for easier feeding of filament.
Filament Sensor: The CR-6 Max 3d printer is equipped with a photoelectric filament sensor detecting any possible filament breakage or runout.
Resume Print Function: Outages or disconnections should be no problem for the CR-6 Max because it can fully recover and resume the print when it’s back up.
32-Bit Motherboard: The CR-6 SE reached one of its stretch goals on Kickstarter, meaning that both the SE and the Max will be delivered with a 32-bit motherboard for enhanced performance.
TMC2209 Motor Drivers: Another stretch goal, Creality will be adding TMC2209 motor drivers for more precise and quiet printing.
Mean Well Power Supply: Clarified in Creality’s latest update, the CR-6 SE and CR-6 Max will be shipping with high-quality Mean Well power supplies for extended hardware life and your peace of mind.
CR-6 MAX FDM 3D Printer Properties
Modeling Technology: FDM（Fused Deposition Modeling）
Printing Size: 400x400x400mm
Supported Materials: PLA/TPU/PETG/ WOOD
File Transfer: USB/Memory card
CR-6 MAX FDM 3D Printer Hardware
Machine size : 725x640x691mm
Motherboard: Silent motherboard
Nominal Voltage: 100v-240v
Rated Power: 500W
Output Voltage: 24V
CR-6 MAX FDM 3D Printer Extruder Hardware
Layer Thickness: 0.1-0.4mm
Print Resolution: ±0.1mm
Nozzle Temperature: ≤260℃
Nozzle Diameter: 0.4mm as standard
Hotbed Temperature: ≤90℃
